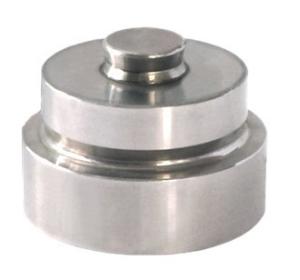

SAL304A 1-4.7t compression load cell compatible to HBM RTN alluy steel and stainless steel optional

Name: SAL304A 147t compression load cell compatible to HBM RTN alluy steel and stainless steel optional
Brand: SATIS
Price: 90 USD

Brand Name : SATIS

Model Number : SAL304A

Certification : N/A

Place of Origin : CHINA

MOQ : 50 units

Price : USD 90 - 120 per unit

Payment Terms : T/T

Supply Ability : 3000 units per month

Delivery Time : 30 working days

Packaging Details : netural carton

Contact Now

Features

Capacity: 1-4.7t
High accuracy, low profile
Alloy steel construction
Compression, suitable for electronic truck scales, hopper scales, batch scales and other electronic weighing device

Specification

Maximum capacity (Emax)	t	1, 2.2, 3.3, 4.7
Rated output (Cn)	mV/V	2.85 ± 0.015
Accuracy	±%FS	0.05
Max. number of intervals (nLC)	-	3000
Creep (30 minutes)	±%FS	0.02
Zero balance	±%FS	1
Temperature effect on zero balance (TCO)	±%FS/10°C	0.02
Temperature effect on sensitivity (TC Span)	±%FS/10°C	0.02
Safe overload	%FS	150
Ultimate overload	%FS	200
Nominal temperature range	°C	-10 ... + 40
Operating temperature range	°C	- 30 ... + 70
Input impedance	Ω	1450 ± 10
Output impedance	Ω	1402 ± 5
Insulation impedance	MΩ	≥ 5000
Recommended excitation	V DC/AC	10 -12
Excitation maximum	V DC/AC	15
Material	-	Alloy steel
Protection class	-	IP68
Cable	-	Length: 8m or customize special length to order; Diameter: Φ 6mm

Wiring

The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.

SAL304A 1-4.7t compression load cell compatible to HBM RTN alluy steel and stainless steel optional

Dimension

SAL304A 1-4.7t compression load cell compatible to HBM RTN alluy steel and stainless steel optional

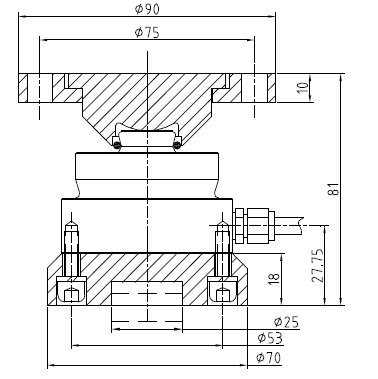

Accessories

SAL304A 1-4.7t compression load cell compatible to HBM RTN alluy steel and stainless steel optional

Accessory model: type b mounting

Notes:

The mounting is optional in your order, if you need it, please list out in your inquiry and order
